Product Name: Wind and Rain Sensor
Product Introduction：Both RS and WS are designed to work with AF range of control panel to protect damages to windows and indoor fixtures from ingress of rain or strong wind. Both sensors are calibrated in the factory, users can adjust sensitivity on site by simple setting. Both sensor can work separately or as a combo wind and rain sensor.
Product Features:
Rain sensor is heated to avoid unwanted activation of window closing due to water condensation such as morning dew.
Choice of aluminium or ABS material for wind speed cup to cater for different environment.
All electronics are encapsulated in water proof epoxy to enhance working life due to adverse external environment.
Onsite adjustable setting for different sensitivity of different application requirement.
Technical Specifications:

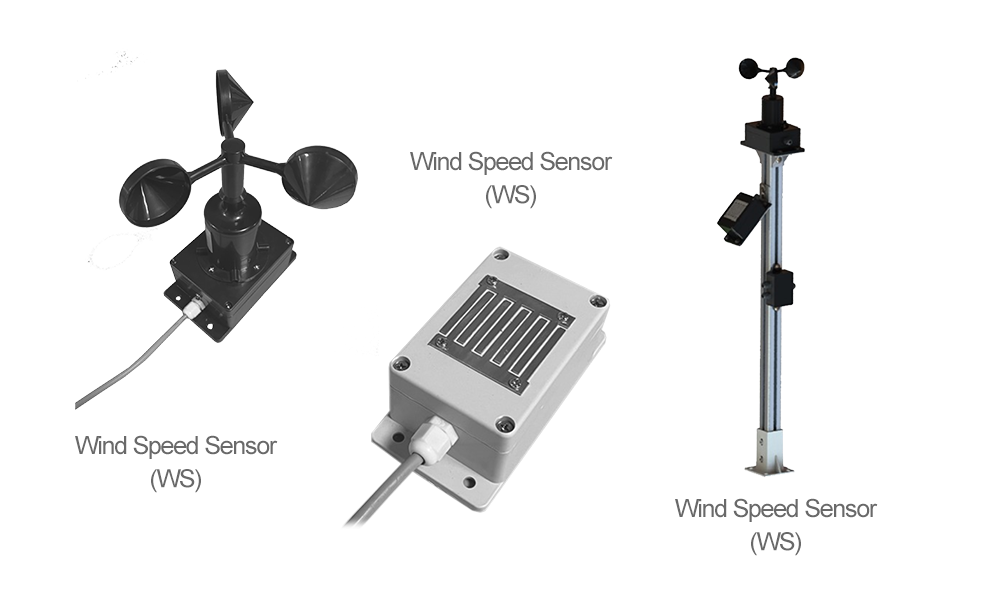

Wind Speed Sensor
Voltage: 24 Vdc +/- 10%
Rating:<2W
Output: Dry Contact
Material: Wind Cup=ABS or aluminum
Housing: ABS
Finishes: Black
Cable: 1 meter cable
Ingress Protection: IP 55
Heated Rain Sensor
Voltage: 24 Vdc +/- 10%
Rating: <10W
Output: Dry Contact
Material: Wind Cup=ABS or aluminum
Housing: ABS
Finishes: Black or off white
Cable: 1 meter cable
Ingress Protection: IP 55
Combined WRS with mounting stand
Voltage: 24 Vdc +/- 10%
Current Rating: <12W
Output: Dry Contact
Material: RS/WS=See above Standard=Aluminum
Ingress Protection: IP 55
