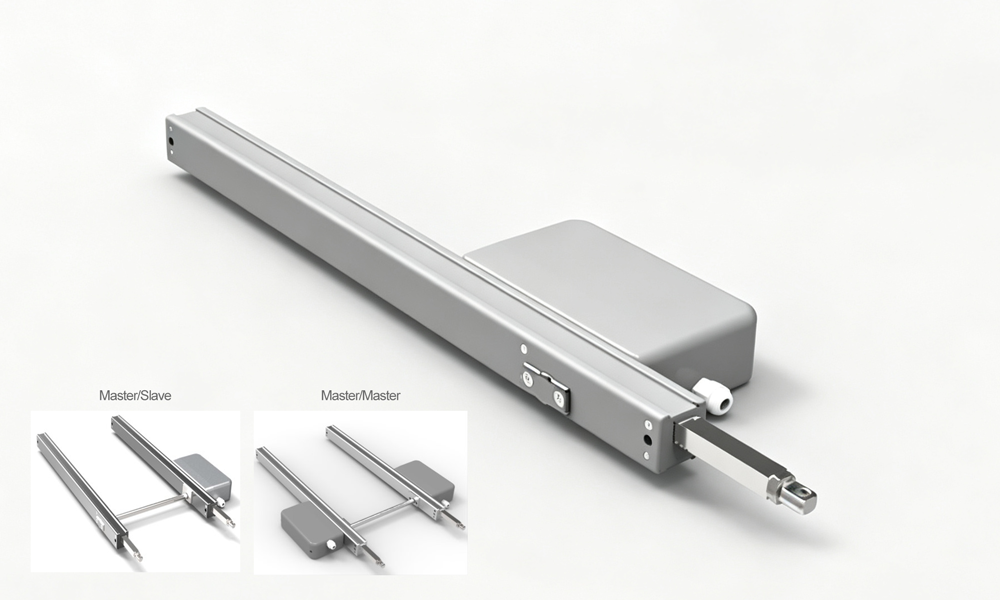

Product Name: RM600/RM800 Rack and Pinion Actuator
Product Introduction: Low cost solution for roof lights, louver, and heavy window application. There are master/slave and master/master configuration using Rack and Pinion motor to provide 2 catches on one ventilator economically, as the synchronization is done by mechanically linked rod to bring 2 motors the same speed.
Product Features:
Affordable window automation solution for roof light and slope vents.
Wide range of force available for different application.
Corrosion resistance.
Design to meet EN 12101-2 annex G.
Choice of master/master and master/slave configuration for 2 catches application.
Mechanically connected for simple, low cost tandem protection.
Choice of plastic and metal housing.
Technical Specifications:
Voltage: 24 Vdc +/- 15%
Ampere : Single/Master slave 0.8-1A Master/Master 1.6-2A
Stroke: 100-1,000mm
Push/Pull forces : RM 600 = 600N (single/master-slave) RM 800 = 800N (single/master-slave) RM 1200 = 1200N (master/master) RM 1600 = 1600N (master/master)
Clamping forces: 1500N (based on manufacturers bracket)
Speed: 8mm/s
Housing: Plastic/Aluminum
Finishes: Powder coated RAL9006
Cable: 1 meter silicon cable
Ingress Protection: IP 55
Endurance: 10,000 cycles test 30% duty cycle
Weight : 2 kg (1000mm)
Synchronization: mechanically by connecting rod
