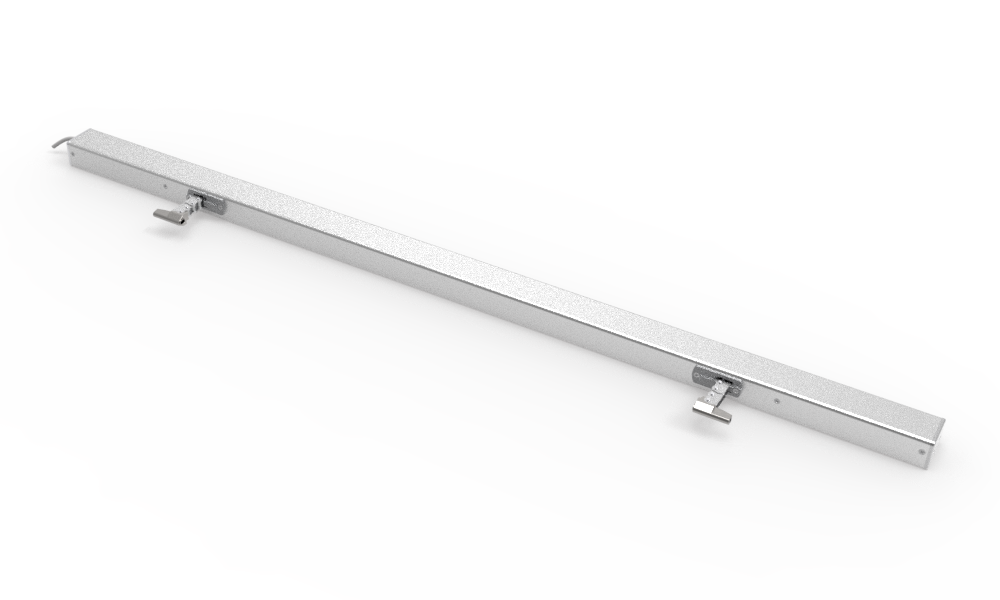

Product Name: CM800 Twin Chain Actuator
Product Introduction:Designed for wide window application when 2 catches are required on the same ventilator. Micro processor based speed control delivers perfect speed synchronization of 2 motors regardless of vent load. This enhances the useful life of the ventilators from immature weather leaks and failure.
Product Features:
Speed synchronization to deliver stress free installation to window structure.
Meets B300 (300°C 30 Mins) EN 12101-2 annex G.
Meets EN12101-2 annex C cycling test for 10,000 cycles.
Standard feature to include Soft opening,water seal
relief and finger protection for safety.
High speed version available to open 900mm in 60 seconds.
Smart version available for network control installation.
Technical Specifications:
Voltage:24 Vdc +/- 15%
Ampere :2.0A @24Vdc*
Stroke: 100 -1,000mm
Push/Pull forces :800N/800N Clamping forces:>3,500N(based on manufacturers bracket)
Speed: 10 mm/s
*high speed version up to 18 mm/s
Housing: Extruded Aluminum
Finishes:Anodized RAL 9006
Cable: 1 meter silicon cable
Ingress Protection: IP 32
Endurance: 10,000 cycles30%duty cycle
Weight :4.5 kg (500mm stroke)
