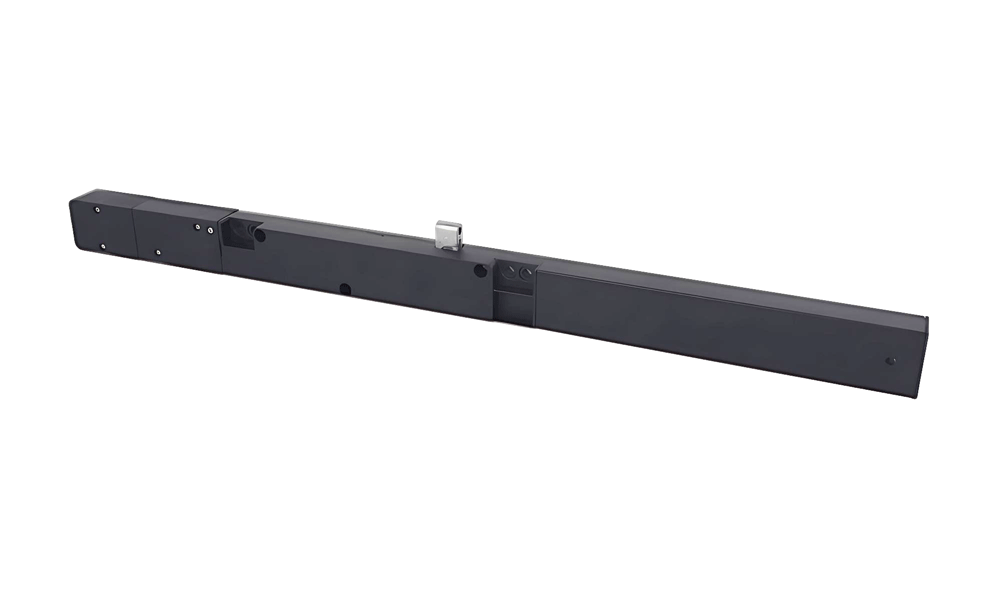

CC250 Concealed Chain Actuator

Details:


Product Name: CC250 Concealed Chain Actuato

Product Introduction:The slim design allows it to be installed inside the window profile to achieve the superior aesthetic requirement while it can be used for general purpose smoke and natural ventilation.

Product Features:

  • Concealed installation inside the profile.

  • Stylish design.

  • Quiet and stable.

  • Suitable for home applications.Easy to install.

Technical Specifications:

  • Voltage:  DC

  • version :24 Vdc +/-15%

  • Rated current : 1.2 A @ 24Vdc

  • Current w/o load: < 0.2 A

  • Stroke: 300mm

  • Push/Pull forces : 250N

  • Clamping forces: 2000N

  • Speed: 6-8mm/s

  • Housing: Zinc & Alum alloy

  • Finish: black

  • Cable: 1 meter PVC cable

  • Ingress Protection:  IP 20 Endurance: > 3,000 cycles  (30% duty cycle)

  • Weight : 1.0 kg

//
