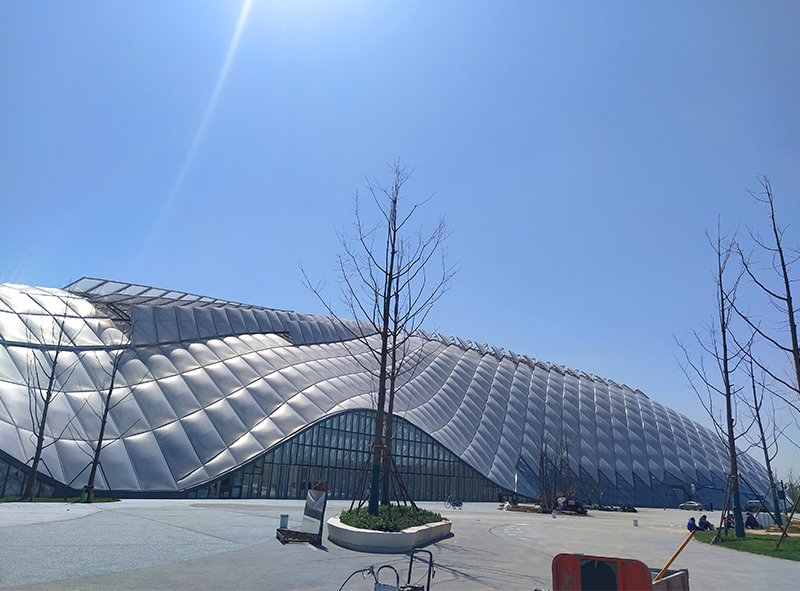

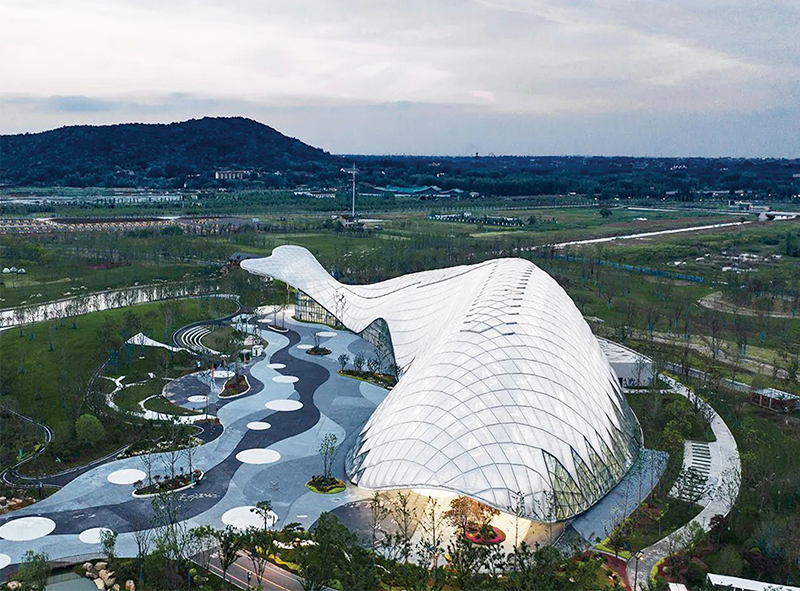

>The International Pavilion of Yangzhou International Horticultural Expo Center. Autofacade 5000N super heavy-duty linear actuators LM5000 are used to to control those irregularly-sahped curved windows. It is definitely a great technicall challenge to overcome the heavy load (9㎡/450kg each) while actualizing synchronization across different speeds and strokes.
>Shanghai Panlong Sports Center. AF 600N chain actuators CM600 and AF/CON panels are used in this project for both comfort and smoke ventilation purpose.
>Anyang Cultural and Sports Center. AF 2500N linear actuators LM2500, 400N chain actuators CM400 and AF/CON panels are used for both comfort and smoke ventilation purpose.
>Nanchang Museum. AF 2500N linear actuators LM2500 and SHEV control panels are used for both comfort and smoke ventilation purpose. With irregularly shaped windows, synchronization is always a hurdle to overcome. AF stands out with its unique solution to the demanding task.
>Qingdao Xihai Art Center. AF 3500N heavy-duty linear actuators LM3500 are used along with the CAN bus control system for both comfort and smoke ventilation purpose. The huge outdoor louvers, 5m high and 300kg weight, are designed by the master architect Jean Nouvel. He devises a way of opening these louvers to simulate the artistic effect like sunshine and water waves. This sophisticated and exquisite design renders unprecedent difficulties facing the actuators and control system manufacturer. This no doubt deserves a benchmark case in facade shading industry.

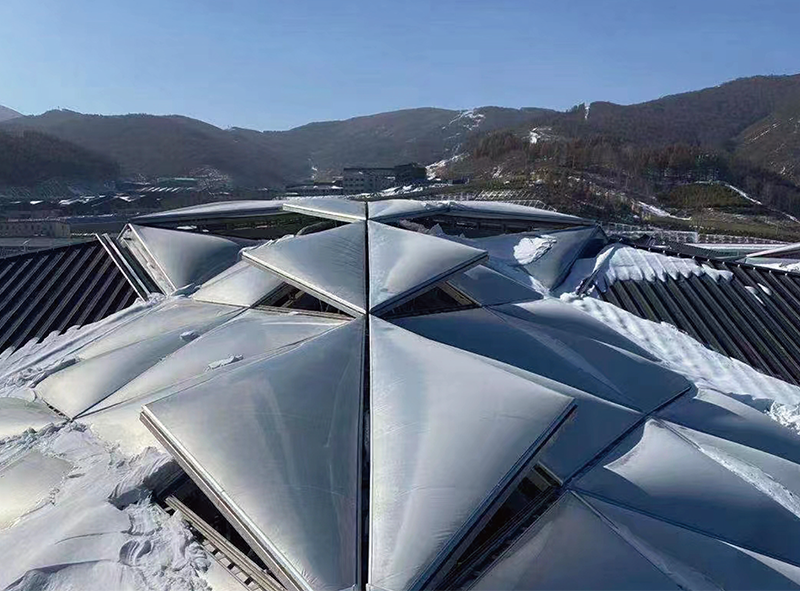

>The Main Hall of the Eastern Olympics. AF 5000N super heavy-duty linear actuators LM5000 and AF/CON control system are used to to control these huge triangular skylights (10㎡/500kg each).
>Danjiangkou Cultural and Sports Center. AF 2500N linear actuators LM2500 are used.

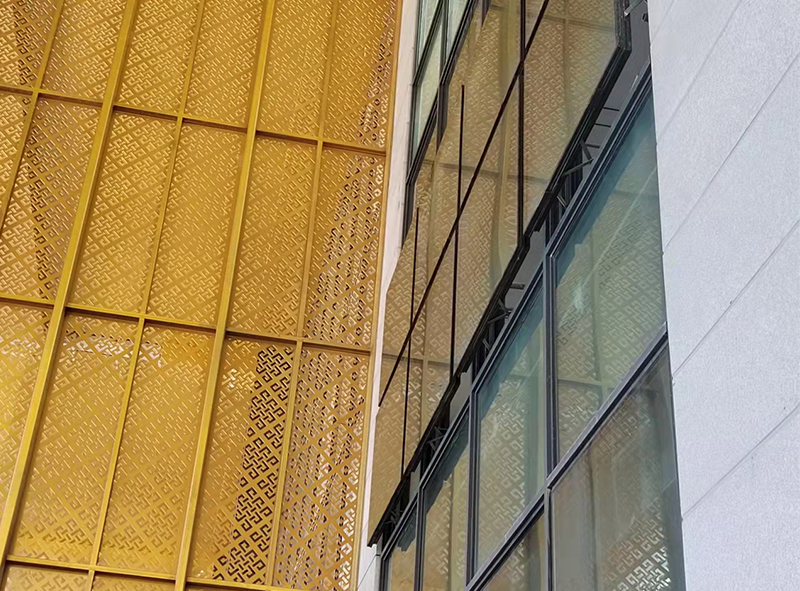

>Tibet Lhasa Cultural and Sports Center. AF 250N chain actuators CM250 and AF/CON control panels are used.
>Xingtai Museum. AF 400N chain actuators and AF/CON panels are used for both natural and smoke ventilation purpose.
>Xingtai Garden Art Museum. AF 400N chain actuators and AF/CON panels are used for both natural and smoke ventilation purpose.
