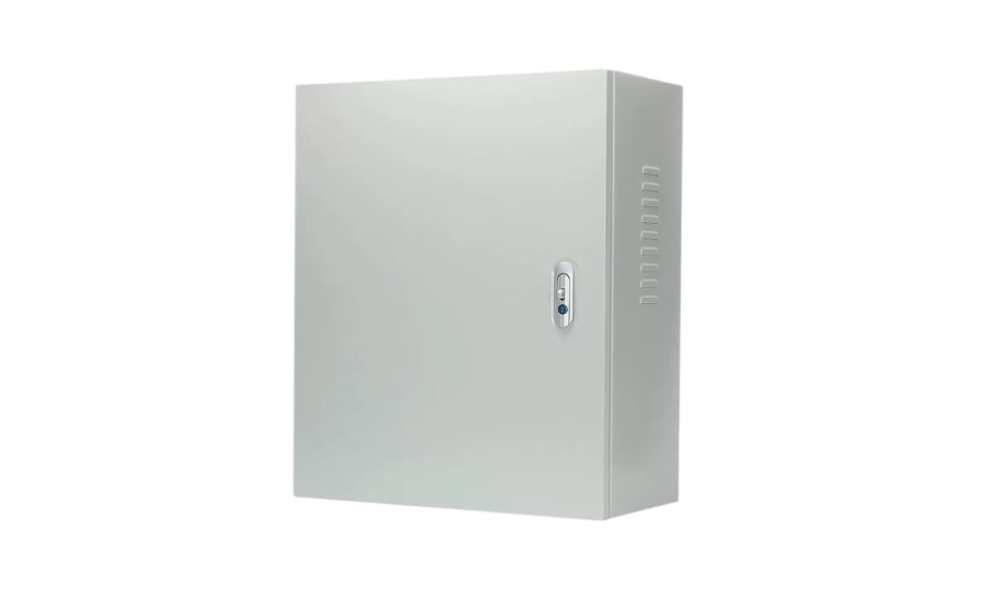

Product Name: NVS Sub-Control Box (32A, 64A, 96A)
Product Introduction:
32A Sub-Control Box: 1 output channel
64A Sub-Control Box: 2 output channels
96A Sub-Control Box: 3 output channels
Product Features:
Supports all fire alarm linkage signal inputs and outputs
Equipped with FOLLOW ME output port, synchronizes with the main control box
868MHz RF remote control for longer transmission distance
Easy wiring
Compatible with ventilation switches
Optional battery backup unit
Technical Specifications:
| Model | NV.S.32.00.01 | NV.S.64.00.02 | NV.S.96.00.03 |
| Description | 32A sub-control box, 1 output | 64A sub-control box, 2 outputs | 96A sub-control box, 3 outputs |
| Dimensions | 400mm*300mm*200mm | 500mm*400mm*200mm | 700mm*500mm*200mm |
| Enclosure Material | Galvanized steel sheet with powder coating | Galvanized steel sheet with powder coating | Galvanized steel sheet with powder coating |
| Color | Industrial gray | Industrial gray | Industrial gray |
| Protection Rating | IP30 | IP30 | IP30 |
| Ambient Temperature | ﹣5℃~45℃ | ﹣5℃~45℃ | ﹣5℃~45℃ |
| Operating Voltage | 230 V AC ±10 %，50~60 Hz | 230 V AC ±10 %，50~60 Hz | 230 V AC ±10 %，50~60 Hz |
| Power | 1000W | 2000W | 3000W |
| On-site Prelaid Fuse | 40A | 40A | 40A |
| Output Voltage | 24Vdc | 24Vdc | 24Vdc |
| Output Power | 900W | 1800W | 2700W |
| Window Opener Output | 1 channel | 2 channels | 3 channels |
