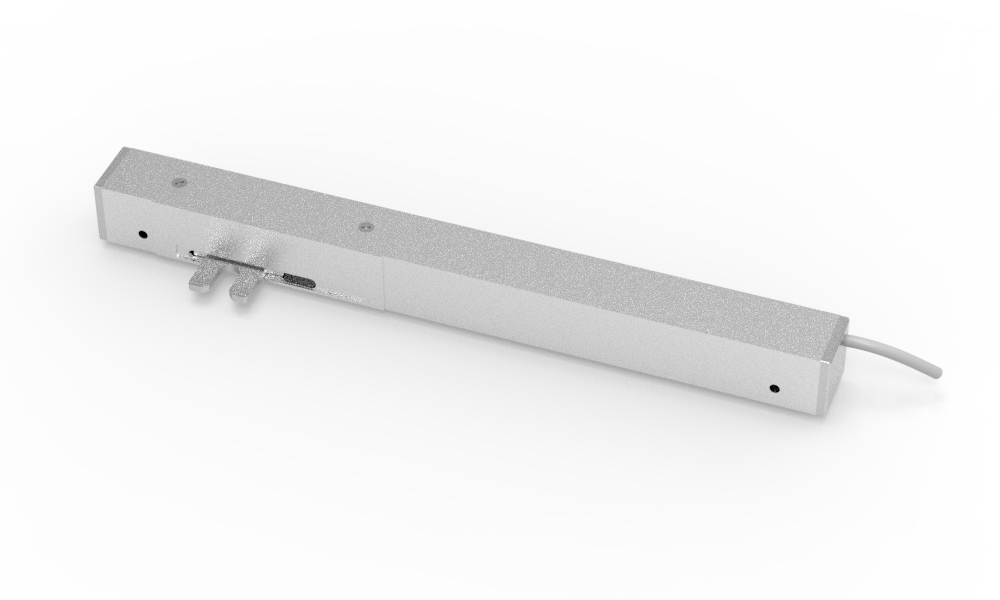

Product Name: MPL800 Multiple Lock/Lourver Actuator
Product Introduction: Compact design, and equipped with manual unlocking mechanism, ideal for in-profile installation for good aesthetic appearance. Control sequence: Open MPL > Open Vent > Close Vent > lock MPL
Product Features:
Compact design easy for conceal installation.
20mm and 55mm stroke selection for driving MPL or louver.
Built in micro processor control and compatible with intelligent actuator for control sequence. No external board required.
Equipped with manual override for quick release during power outrage, and malfunction to facilitate maintenance work.
Technical Specifications:
Voltage: 24 Vdc +/- 6%
Stroke: 20/50mm
Push/Pull forces : 800N
Ampere: 1.2A @ 24Vdc
Speed: 4.0 mm/s
Housing: Extruded Aluminum
Finishes: Powder coated RAL 9006
Cable: 1 meter silicon cable
Ingress Protection: IP 20
Endurance: 10,000 cycles 30% duty cycle
Weight : 1.5 kg (20mm)
