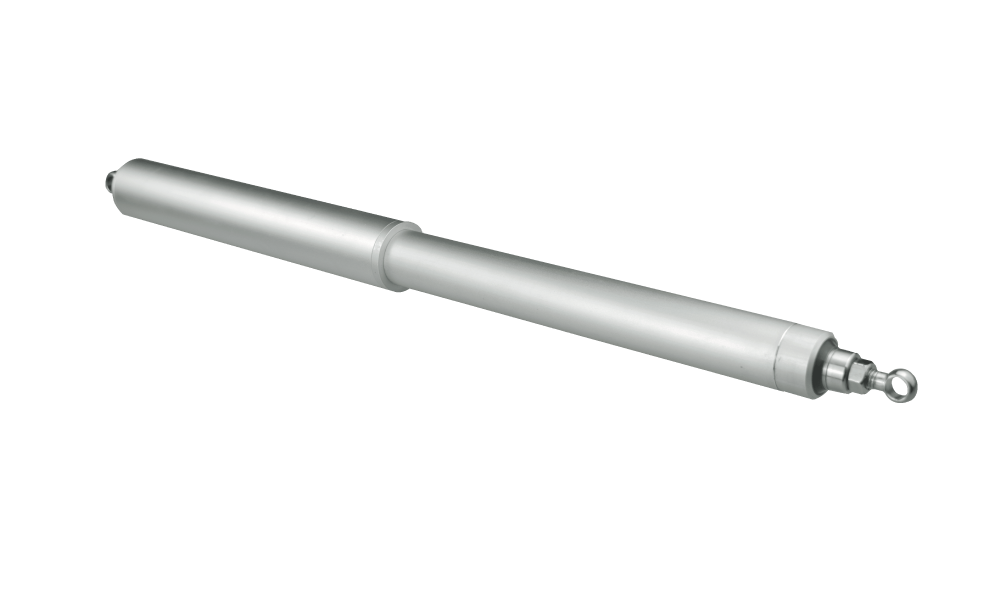

LM5000

Details：

Product Name: LM5000

Product Introduction: 5000N Spindle Actuator

Product Features:

Available in Smart version (E version) / Network version (G version)

Shaft adopts integrated structural combination design to ensure concentricity → smooth and stable operation

Uses a new type of self-lubricating transmission material resistant to high temperatures, ensuring continuous and stable operation under heavy load

High-strength helical geared motor with EPB motor technology maintains constant speed under heavy load

Drive control uses relatively higher-cost servo control technology

Outer tube designed without screw holes, achieving IP68 protection rating

Anti-rotation design of the sliding tube ensures positional accuracy of the electronic encoder

Anti-drop design of internal mechanical structure ensures safety for bottom-hung window applications

Excellent mechanical transmission efficiency, maintaining high-speed operation even under load

Applications: Natural ventilation, smoke and heat extraction

Built-in thermal protection module for operation (optional)

Built-in intelligent module with adjustable parameters according to window type

Built-in fire mode / ventilation mode

Built-in synchronization module, up to 12 units can be controlled together

G version: Built-in A/B Modbus communication port, compatible with network control systems

Window control features: soft close, soft open, rebound release when closing, reverse on obstacle

Technical Specifications:
