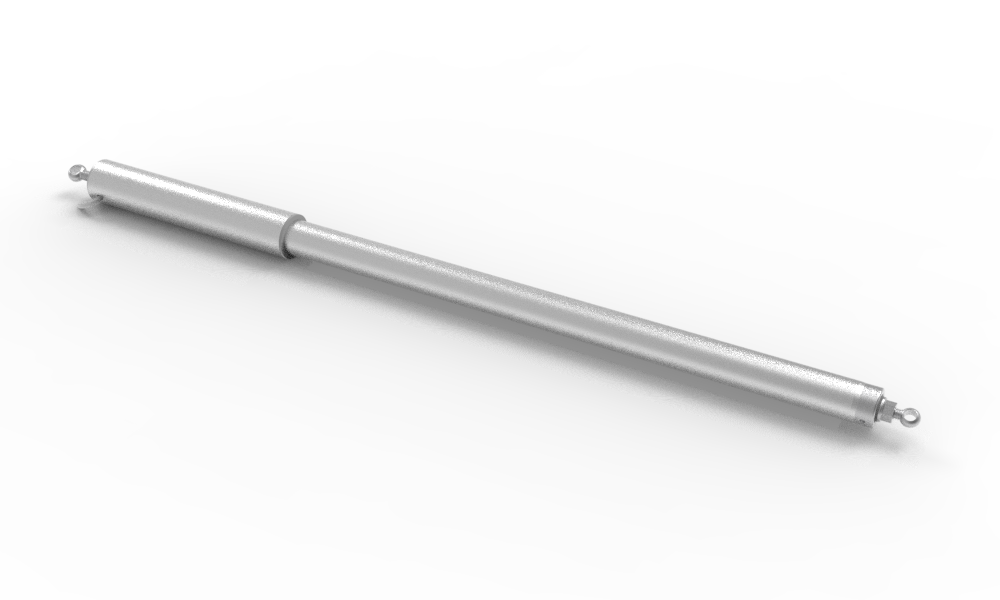

Product Name: LM2000 Spindle Actuator
Product Introduction: Designed for application of heavy window and façade automation system. Ideal for natural and smoke ventilation application. Strong linear actuator for used in heavy roof ventilator or big windows.
Product Features:
Strong linear actuator for up to 2000N, and 1000m stroke.
Corrosion resistance.
Meets B300 (300°C 30 Mins) EN 12101-2 annex G.
Meets EN12101-2 annex C cycling test for 10,000 cycles.
soft opening, water seal relief and finger protection.
Able to open 1000mm in 60 seconds for bottom-hung application* optional
Built-in micro processor to realize intelligent synchronization and constant speed control. Speed and force are configurable on site.
IP65 class ingress protection.
Technical Specifications:
Voltage: 24 Vdc +/-15%
Ampere : 3.0 A
Stroke: 100 -1,000mm (P type for stroke≤500mm, G type for stroke>500mm)
Push/Pull forces : 2000N
Clamping forces: 5,000N (based on manufacturers bracket)
Load Speed: 8 mm/s
Housing: Extruded Aluminum
Finishes: Anodized RAL9006
Cable: 1 meter silicon cable
Ingress Protection: IP 54
Endurance: 10,000 cycles 30% duty cycle
Weight : 6kg (700mm)
Synchronization: internal
