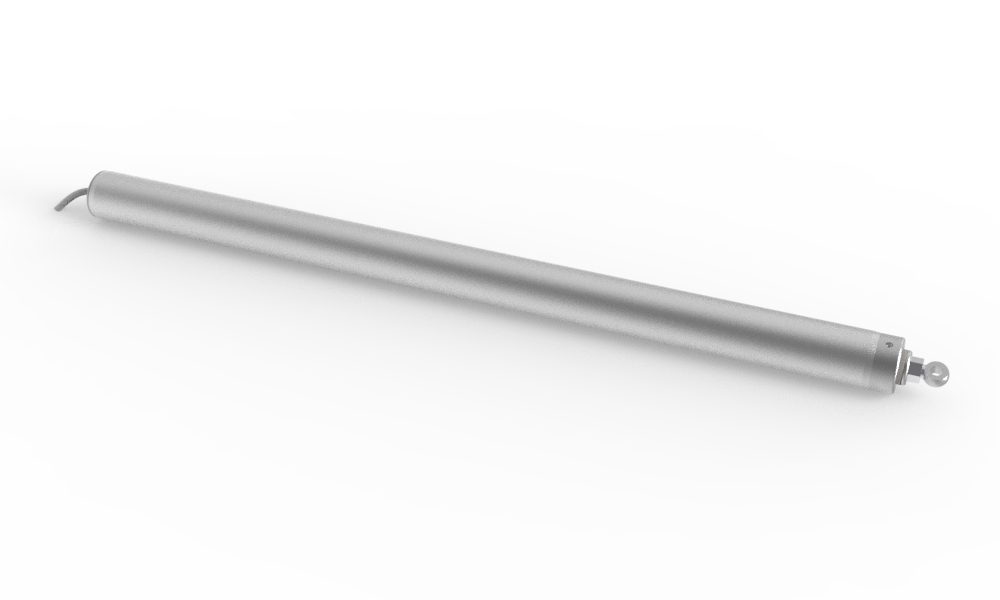

Product Name: LM1500 Water Proof Spindle Actuator
Product Introduction: Designed for general application of window and façade automation system. Ideal for natural and smoke ventilation application. Strong linear actuator for used in heavy roof ventilator or big windows.
Product Features:
Strong linear actuator for up to 1500N, and 1000m stroke.
Corrosion resistance.
Meets B300 (300°C 30 Mins) EN 12101-2 annex G.
Meets EN12101-2 annex C cycling test for 10,000 cycles.
Option :soft opening, water seal relief and finger protection.
High speed version available to open 600mm in 60 seconds.
Smart version available for network control installation.
Micro processor controlled synchronization up to 8 actuators when order (E) version.
IP68 class water proof.
Technical Specifications:
Voltage: 24 Vdc +/- 15%
Operating Ampere : N type-1.0A E type-1.8A
Stroke: 100-1,000mm
Push/Pull forces : 1500N
Clamping forces: 5,000N (based on manufacturers bracket)
Load Speed: 6 mm/s
Housing: Extruded Aluminum
Finishes: Anodized RAL9006
Cable: 1 meter silicon cable
Ingress Protection: IP 68
Endurance: 10,000 cycles 30% duty cycle Weight : 3.6kg (1000mm)
Synchronization: external or internal
