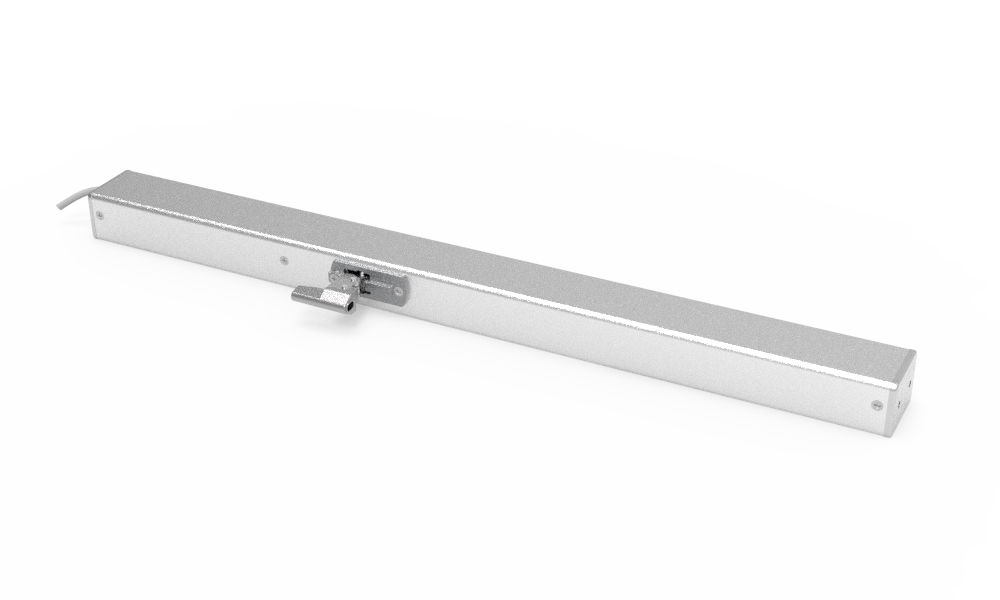

Product Name: CM600 Single Chain Actuator
Product Introduction:Ideal for natural and smoke ventilation application. Robust double chain design provides good compression force to open light roof light and top hung ventilators in most application.
Product Features:
Versatile application for different types of ventilators.
Corrosion resistance.
Meets B300 (300°C 30 Mins) EN 12101-2 annex G.
Meets EN12101-2 annex C cycling test for 10,000 cycles.
Optional:soft opening, water seal relief and finger protection for safety.
High speed version available to open 1400mm in 60 sec.
Smart version available for network control installation.
Technical Specifications:
Supply :24 Vdc +/- 15%
Ampere:2.3A @24Vdc
Stroke: 100 -1,400 mm (retraction only for stroke >600mm)
Push/Pull forces : 600N/600N Clamping forces:>3,500N(based on manufacturers bracket)
Speed: 18 -25 mm/s
Housing: Extruded Aluminum
Finishes:Anodized RAL 9006
Cable: 1 m silicon cable
Ingress Protection: IP 32
Endurance: 10,000 cycles30% duty cycle
Weight :2.2 kg (500mm stroke)
