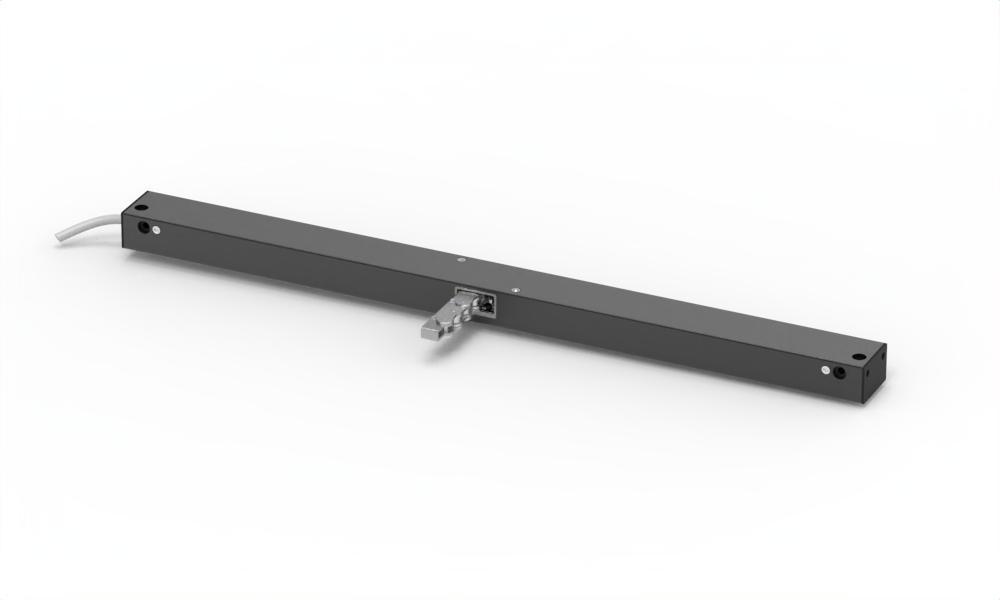

Product Name: CC300 Slim Concealed Chain Actuator
Product Introduction:The slim design allows it to be installed inside the window profile to achieve the superior aesthetic requirement while it can be used for general purpose smoke and natural ventilation.This is an upgrade version of CC250 model to reach even higher performance.
Product Features:
Concealed installation inside the profile.
Stylish design.
Quiet and stable.Suitable for home applications.
Easy to install.
Technical Specifications:
DC version :24 Vdc +/- 15%
Rated current : 1.2 A @24Vdc
Push/Pull forces:300N
Stroke:300mm(>300mm retraction only)
Clamping forces: 3000N
Speed:9.5mm/s
Housing:Aluminum alloy
Finishes:Anodized RAL 9006
Cable:2 meter PVC cable
Ingress Protection: IP 32
Endurance:> 10,000 cycles(30%duty cycle)
Weight : 1.0 kg
