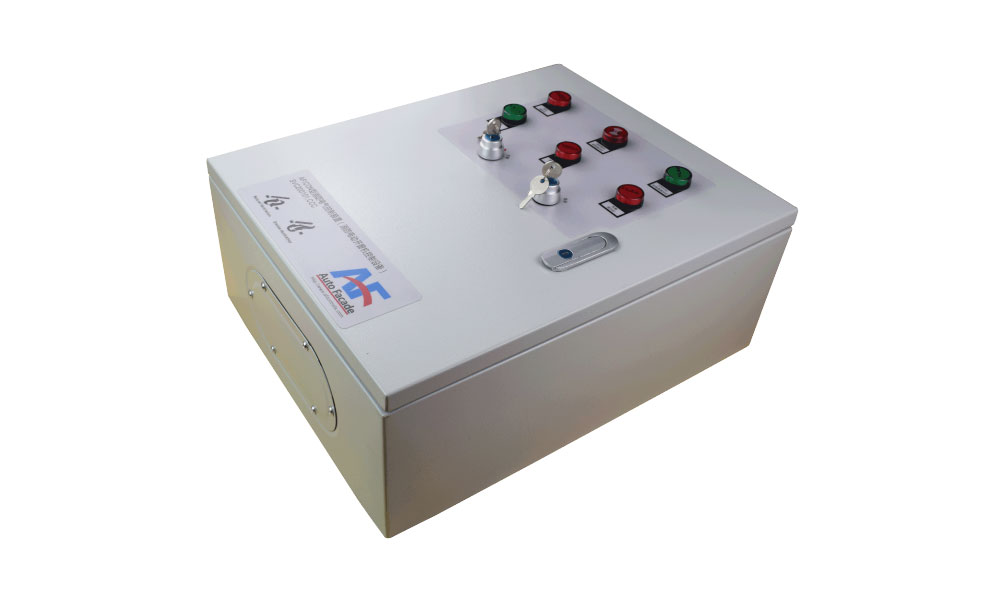

Product Name: AF/CON
Product Introduction: 20A Fire Control Box
Product Features:
Application: Smoke exhaust/heat extraction, natural ventilation.
Passive fire signal input / passive fire signal feedback output.
Compatible with wind/rain sensors.
Simple control device installation method, equipped with indicator lights for operating, fire, fault alarm, etc.
Current overload protection.
Provides control input signals for fire, emergency, reset, manual, and auto modes.
Line fault monitoring (optional).
Backup power supply (optional).
Technical Specifications:
| Model | AF/CON | Ambient Temperature | ﹣5℃~45℃ |
| Description | 20A Fire Control Box | Operating Voltage | 230 V AC ±10 %，50~60 Hz |
| Dimensions | 500mm*400mm*200mm | Power | 600W |
| Enclosure Material | Galvanized steel sheet with powder coating | On-site Prelaid Fuse | 20A |
| Color | Industrial gray | Output Voltage | 24Vdc |
| Protection Rating | IP30 | Output Power | 480W |
