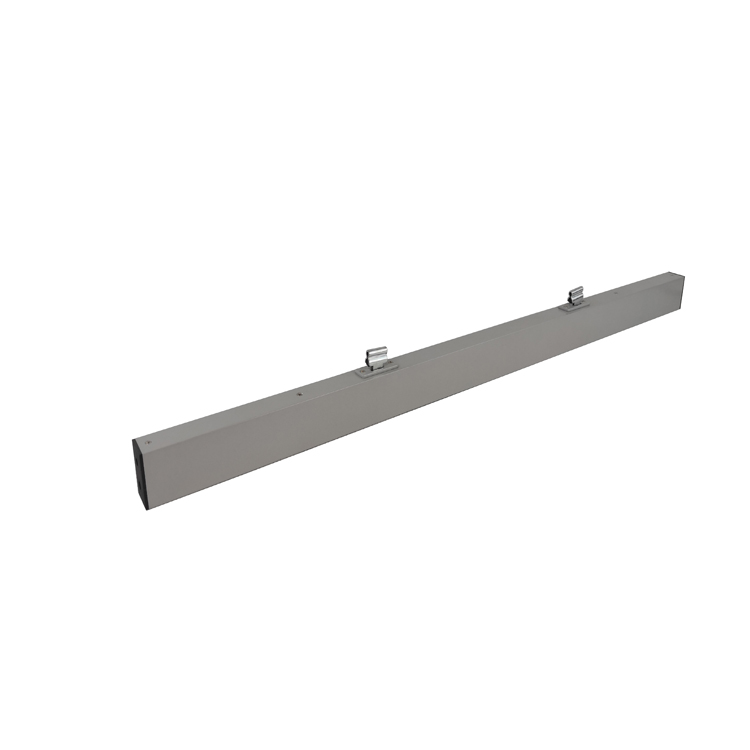

With a slim profile, this product is designed to use in the small or medium windows or even the conceal installation. Very quiet operation makes it ideal for day to day ventilation. It is extensively used in natural ventilation or light weight roof-light.
Features
Compact and small housing for use in small windows.
Corrosion resistance.
Design to meet EN 12101-2 annex G.
Meet EN12101-2 annex C cycling test for 10,000 cycles.
Integrated with features of soft opening, water seal relief and finger protection.
Network control available.
Technical
Voltage： | 24 Vdc +/- 15% | Finishes: | Powder coated RAL 9006 |
Stroke： | 100 - 800 mm (above 350mm pull only) | Cable: | 1 meter silicon cable |
Push/Pull forces： | 500N/500N | Ingress Protection: | IP 32 |
Clamping forces： | >3,000N (based on manufacturers bracket) | Endurance: | 10,000 cycles on 30% duty cycle |
Current at nominal load: | 1.2 A | Weight : | 2.5 kg (350mm stroke) |
No-load current： | 0.2A | Synchronization: | Yes |
Speed： | 5-6mm/s | ||
Housing： | Extruded Aluminum |
