Description

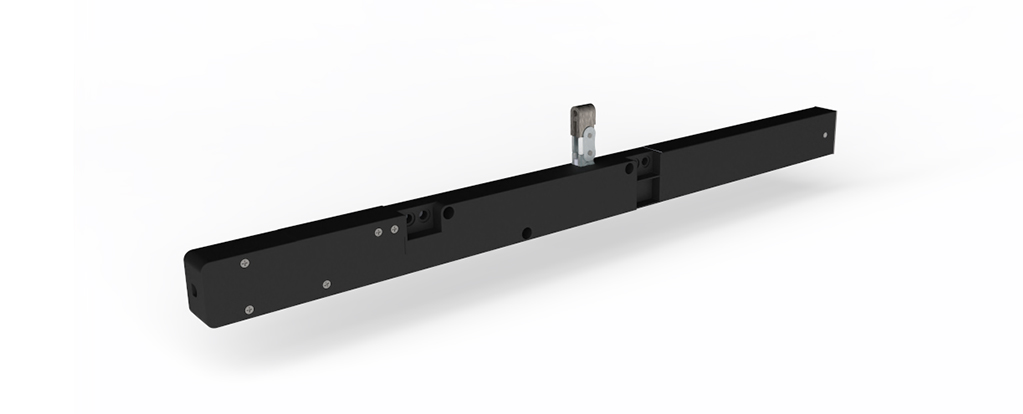

The slim design allows it to be installed inside the window profile to achieve the superior aesthetic requirement while it can be used for general purpose smoke and natural ventilation.
Features
Concealed installation inside the profile.
Stylish, quiet and stable. Suitable for home applications.
Options to include soft opening, water seal relief and finger protection for safety.
High speed version available to open 900mm in 60 seconds.
Intelligent version available for network control installation.
Technical
Voltage： | 24 Vdc ± 15% | Finishes: | Black |
Stroke： | 100-300mm | Cable: | 1 meter pvc cable |
Push/Pull forces： | 250N | Ingress Protection: | IP 32 |
Clamping forces： | >2000N (based on manufacturers bracket) | Endurance: | 4,000 cycles 30% duty cycle |
Current at nominal load: | 1.2 A | Weight : | 1.0kg (300mm stroke) |
No load current： | 0.2 A | Synchronization: | |
Speed： | Max. 10mm/s | Confirm To: | |
Housing： | Extruded aluminum |
